| Quantity: | |
|---|---|

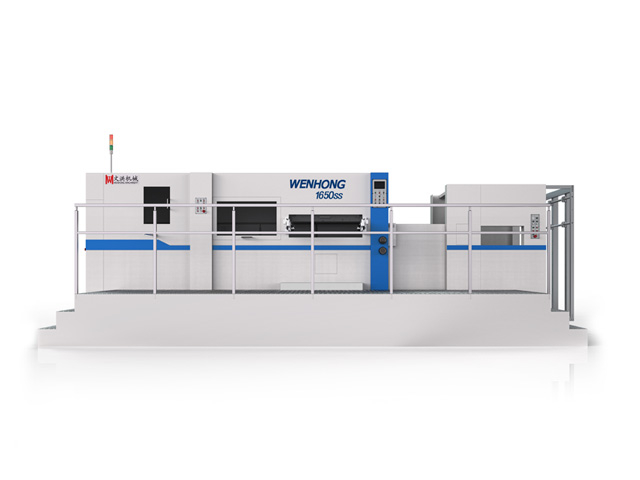

Model No. | WH-1650SS | WH-1650SS |
Max.Sheet format | 1650×1200mm | 1650×1200mm |
Min.Sheet format | 650×520mm | 650×520mm |
Max.Cutting format | 1630×1180mm | 1630×1180mm |
Min.Stripping format | 10mm | 10mm |
Blade Height | 23.8mm | 23.8mm |
Die Cutting Pressure | 450 Ton | 450 Ton |
Power | 38 kw | 38 kw |
Min.gripping margin | 6-12mm | 6-12mm |
Sheet Type | ≥300 GSM cardboard, F、E、B、C、A wall | F、E、B、C、A、AB Corrugated Paperboard, cardboard to Corrugated carton thickness 2-9mm |
Maximum mechanical speed | 5000 sheets/h | 5000 sheets/h |
Machine Weight | 38 Ton | 38 Ton |
Machine dimension | L10.7m×W5.6m×H2.8m | L10.7m×W5.6m×H2.8m |
