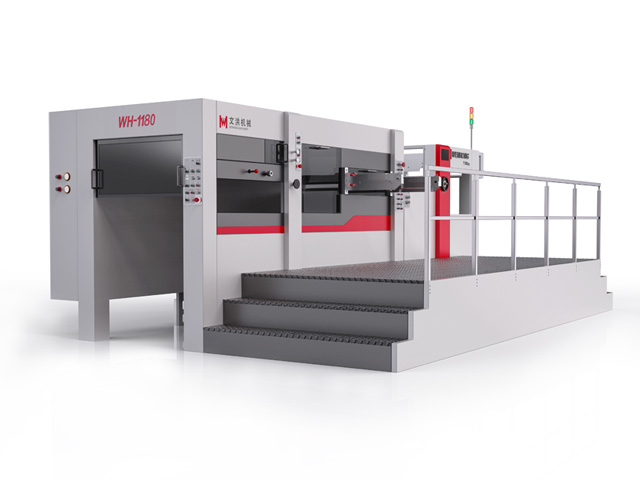

Excelcut 1180

The fully automatic flatbed die cutting machine Excelcut 1180/1300 features an inclined paper feeding platform, ideal for handling and positioning high-speed thin papers. Equipped with a dual-function pull-push side guide system that adapts to different paper types with easy switching; it includes seven paper-holding tooth rows, each containing 10 sets of imported precision steel teeth and corresponding tooth rests; along with a fully automatic main and auxiliary paper collection system that ensures seamless operation without stopping the machine, significantly enhancing production efficiency.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1180SS	WH-1180SS	WH-1300SS
Max.Sheet Size	1180×900 mm	1180×900 mm	1300×1050 mm
Min.Sheet Size	425×440 mm	400×360 mm	435×560 mm 425×440 mm
Max.Cutting Size	1150×885 mm	1150×885 mm	1290×1000 mm
Feeding materials	F/E/B/C wall, Corrugated paper board =2-4mm	100-2000g/m² cardboard 0.1-2mm cardboard, F/E/B/C wall, corrugated paper board =2-4mm	F/E/B/C wall, Corrugated paper board =2-6mm
Maximum mechanical speed	7500 Sheets/h	7500 Sheets/h	7000 Sheets/h
Min.gripping margin	9.5mm
Die cutting pressure	400 Ton
Power required	25.0kw	24.0kw	40.0kw
Machine weight	22.0 Ton		25.0 Ton
Machine dimension	L7.88m×W4.34m×H2.52m	L7.88m×W4.34m×H2.52m	L9.3m×W4.52m×H2.6m
