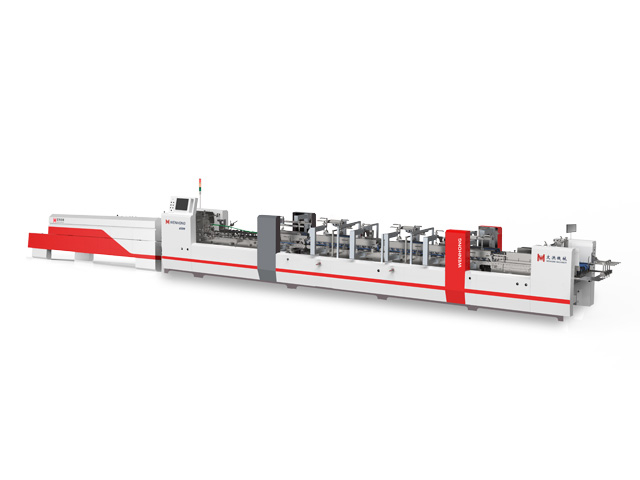

Benefold 880

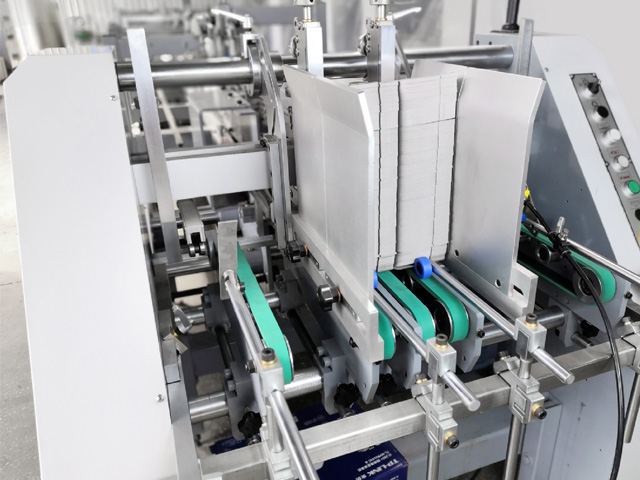

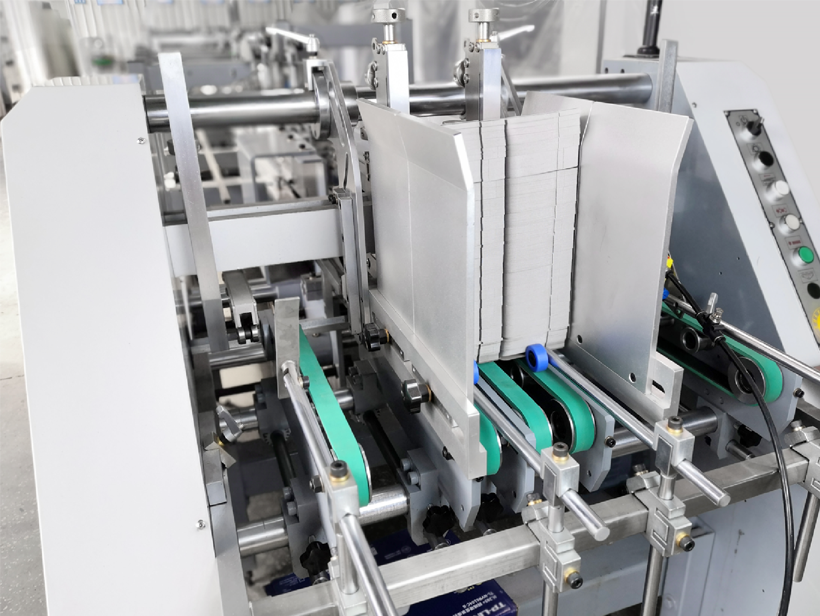

Paper Department

Automatic continuous and correct paper feeding, with infinitely adjustable paper feeding intervals.

The paper feeding belt is made of special synthetic rubber produced in Japan, with high friction coefficient and excellent wear resistance, suitable for long-term operation.

Assist vibration motor to increase paper output stability.

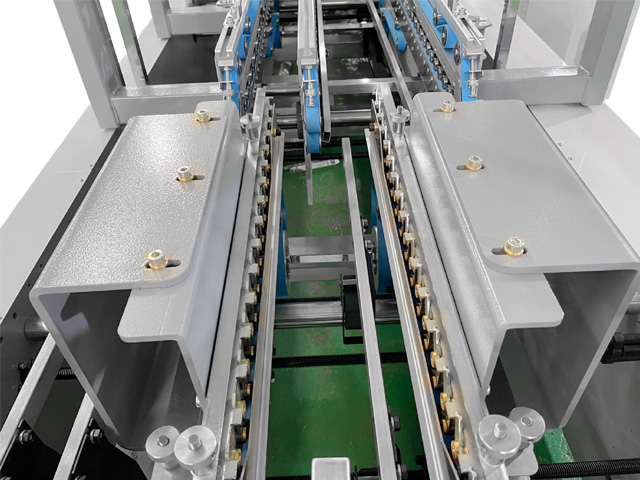

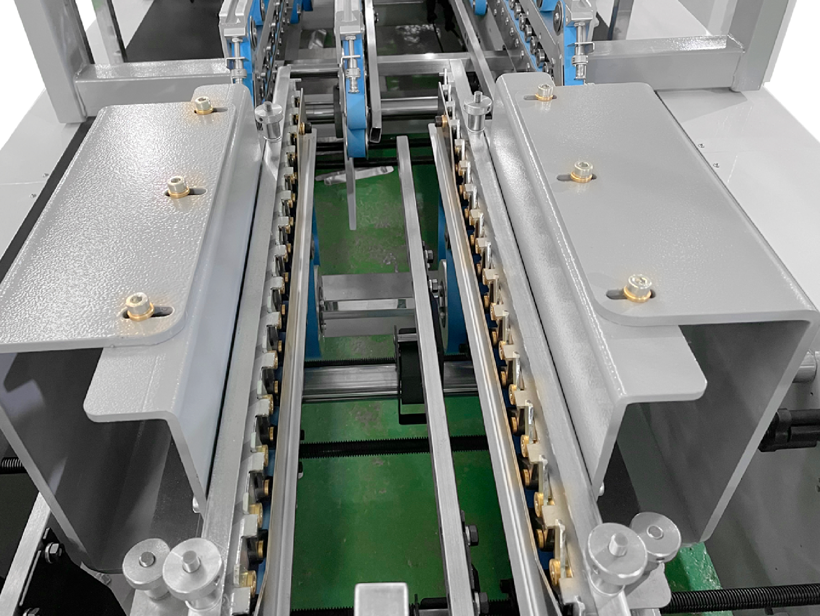

Guiding Section

Each set of guide plates is equipped with an adjustable inclined belt.

There is a row of adjustable pressure bearings on the upper belt.

The parallelism error of the paper box can be corrected to ensure that the paper runs parallel to the next part.

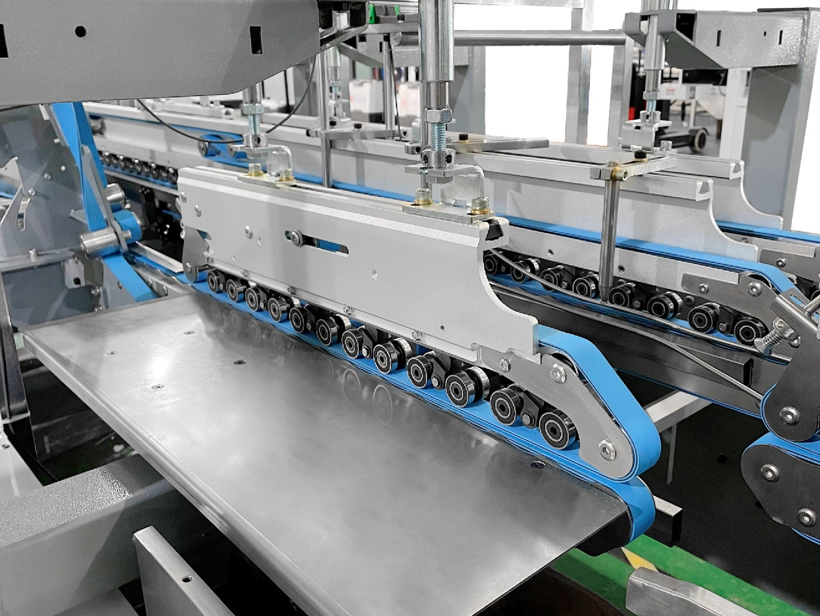

Turnback Department

Pre fold and unfold the first and third wires, equipped with a folding belt and a small folding knife for replacement.

The right folding band can be folded back or directly formed.

Segmented upper pressure plate, adjustable according to product requirements.

Hexagonal Forming Department

Using high-speed computer system analysis, servo motor control, and performing hexagonal forming.

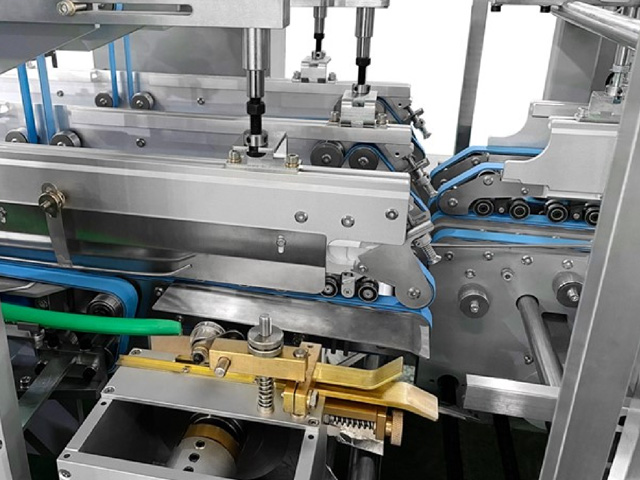

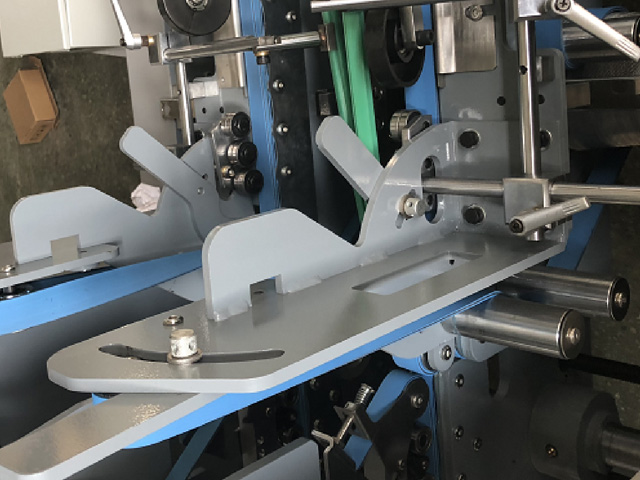

Bottom Sticker Section

Suitable for bottom and side stickers, spray adhesive system needs to be selected.

There are three positions for bottom hooking action:

A. Perform a hooking and pasting action on the bottom adhesive part;

B. Perform a middle angle forming action at the outlet of the bottom sticker part;

C. Perform paper edge angle forming action on the right or left side of this fold.

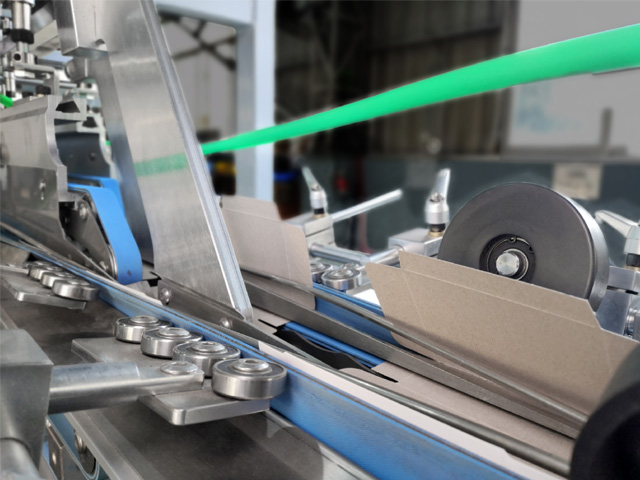

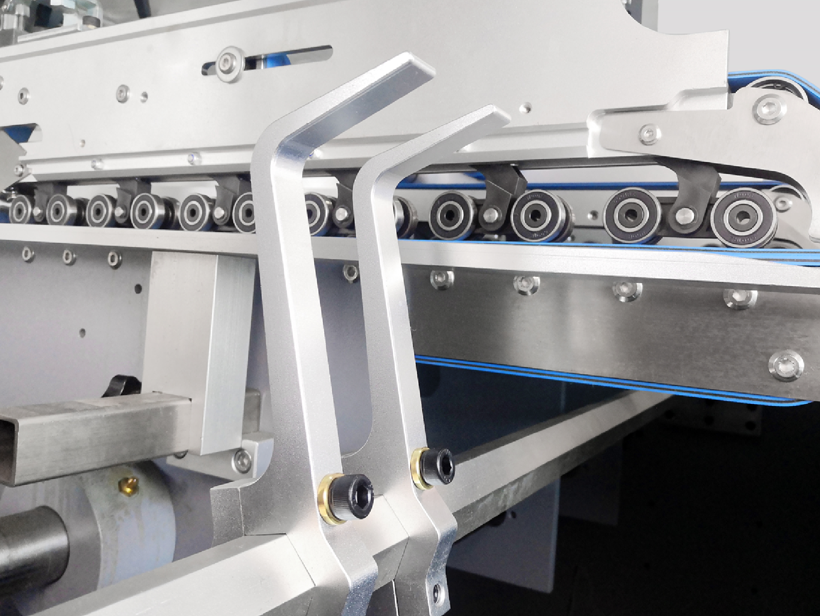

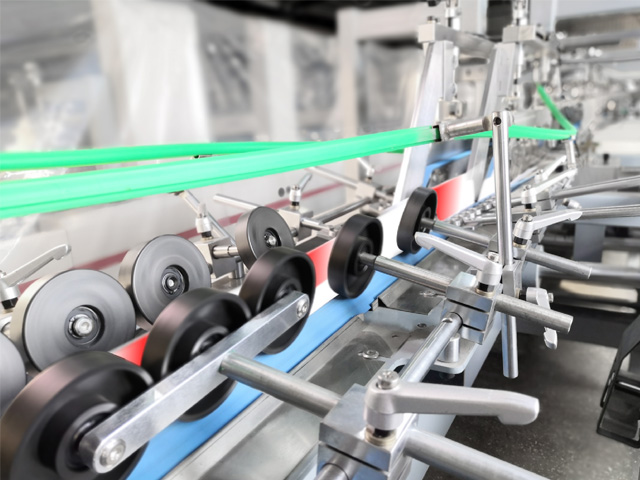

This Section

At the entrance, there is a set of left and right devices equipped with a bottom paste cylinder (paste tray width 3mm) for quantitative paste application, large capacity, and easy maintenance.

The left and right folding straps can move up and down independently to adjust the tightness of the paper box thread.

Equipped with a folding belt variable speed device, used to solve problems such as horn mouth, up and down lines during the folding process.

Pressing Down on The Part

Using a photoelectric counter to preset quantitative counting, control the kick plate to automatically label the paper box according to the set quantity.

Kick board mark: Mark the paper box by tilting it (used for large paper boxes and slow running).

PLC、 The human-machine interface realizes human-machine interaction and is equipped with a wireless remote control.

Transportation Department

Continuously stacking boxes and evenly pressing them to ensure that the glue on the paper box is compacted and the finished products are transported neatly, ensuring perfect quality.

The upper and lower conveyor belts are made of imported PVC belts with excellent wear resistance.

The entrance is equipped with 2 sets of large wheels and 2 sets of small wheels to stabilize the paper boxes, ensuring that they enter the conveyor smoothly and neatly.

The entrance is equipped with an automatic paper box parking protection device to minimize the damage rate of paper boxes.

The conveying section adopts cylinder automatic pressurization, making adjustment more convenient.
