The intelligent high-speed folder gluer Benefold 1600 is suitable for capping various box types, including straight boxes, hook-bottom boxes, four-sided boxes, and six-sided boxes. Equipped with high-precision pre-folding alignment correction, color box-specific pre-pressure line functionality, and one-click machine adjustment via QR code scanning. Highly flexible, multi-functional, and easy-to-use with efficient performance.
Four-fold side gluing, Both-side Gluing, Bottom Gluing
Four-fold side gluing, Both-side Gluing, Bottom Gluing, 4/6 corner
Feed Material
Cardboard, Corrugated carton E、B flute
Gluing Speed
MAX.300M/min.
Feeding
Automatic accurate continuously feeding
Glue
Emulsion type, solvent
Pre-folding
/
The first line 180°, the third line 135°
Power required
45 KW, AC380V
52 KW, AC380V
Air Pressure
0.28m³/min-Prepared by user
Machine Weight
13.8 Ton
16.8 Ton
16.8 Ton
Machine Dimension
L18.0m*W2.4m*H2.5m
L21.5m*W2.4m*H2.5m
L21.5m*W2.4m*H2.5m

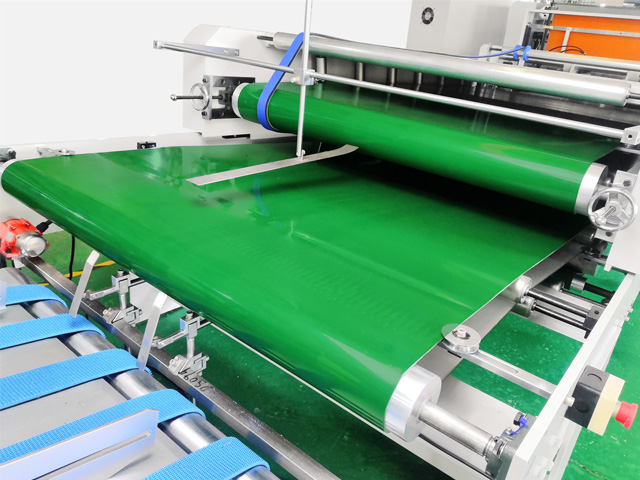

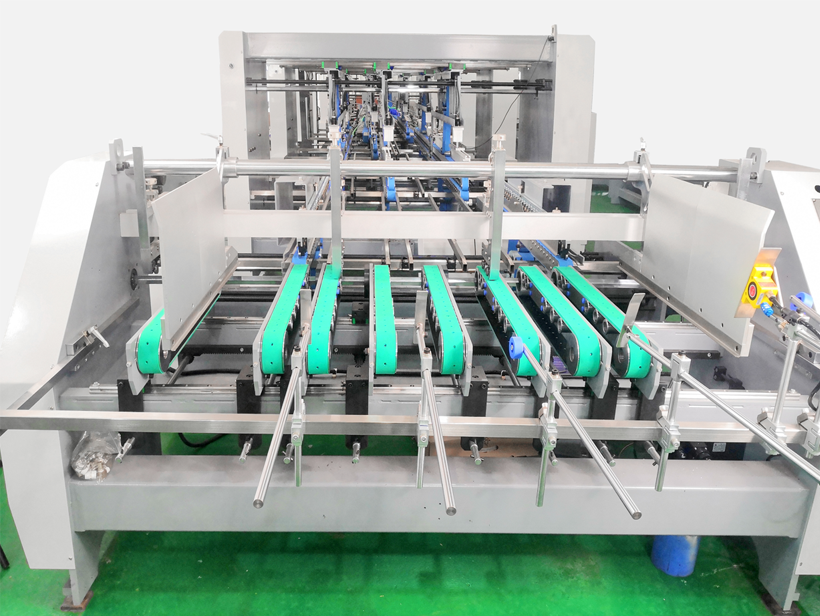

Paper Department
8 groups can independently adjust the force of paper feeding, ensuring easy machine calibration and smooth paper feeding.
Servo driven paper feeding ensures stable and normal conveying and paper receiving.

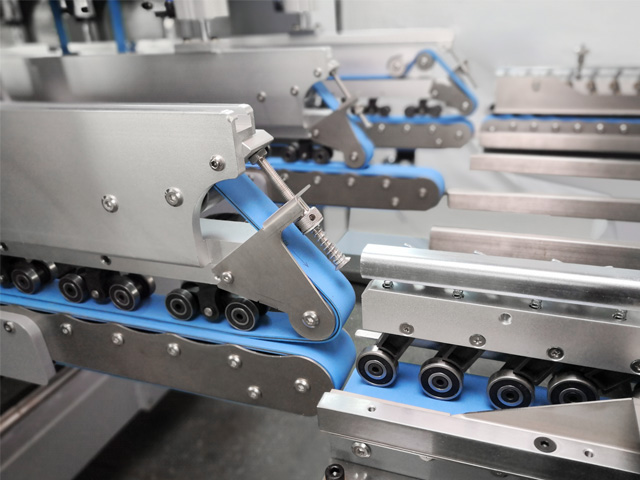

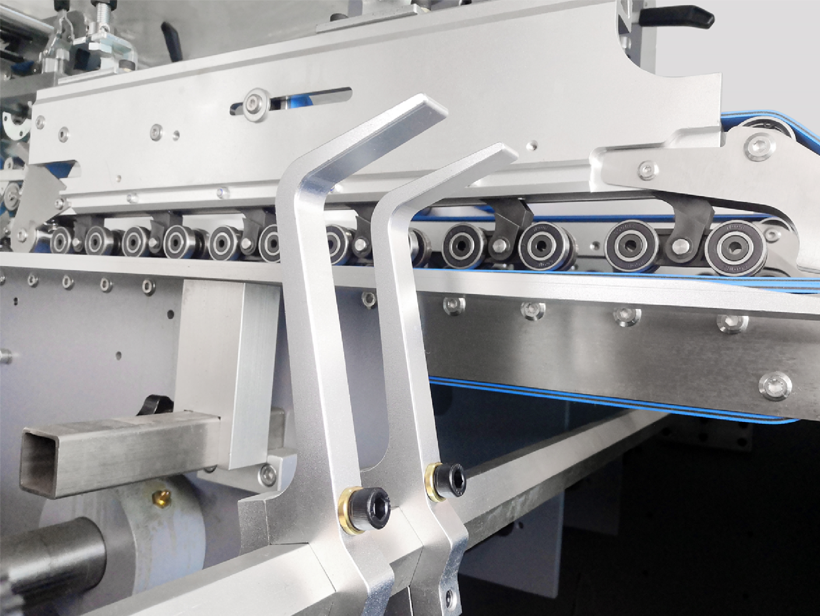

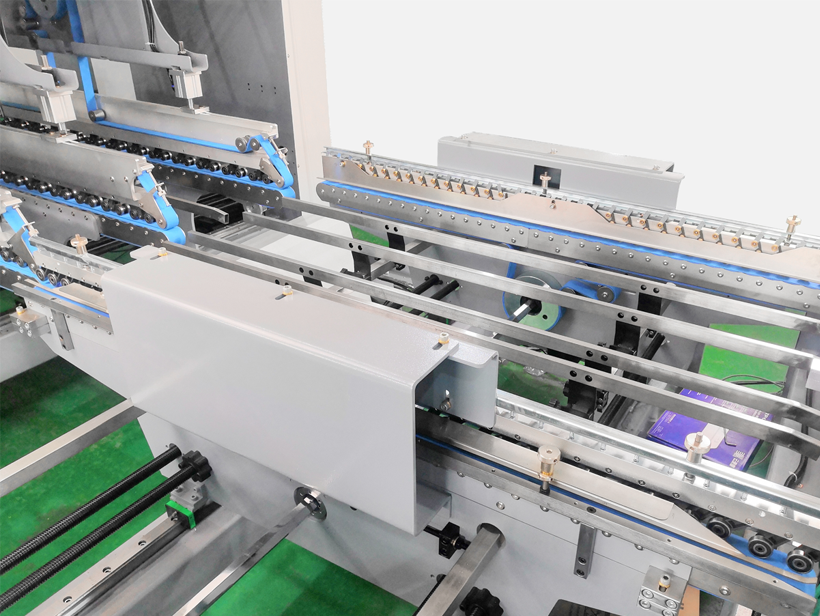

Guiding Section
Composed of two sets of guide plates.
Each set of guide plates is equipped with an adjustable inclined belt.
There is a row of adjustable pressure bearings on the upper belt.
The parallelism error of the paper box can be corrected to ensure that the paper runs parallel to the next part.

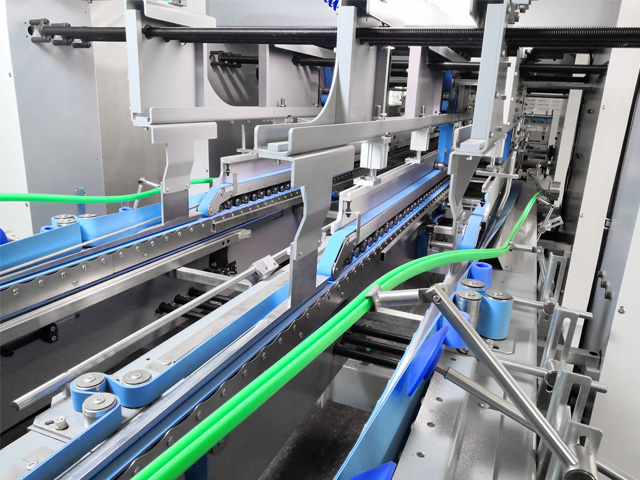

Hexagonal Forming Device
Using high-speed computer system analysis, servo motor control, and performing hexagonal forming.

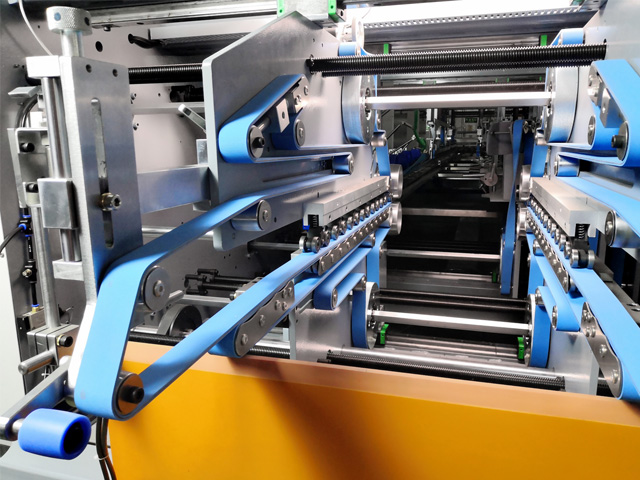

Turnback Department
Three sets of lower straps and segmented upper straps meet the requirements for selecting and installing various components.
Pre fold and unfold the first and third wires, equipped with a folding belt and a small folding knife for replacement.

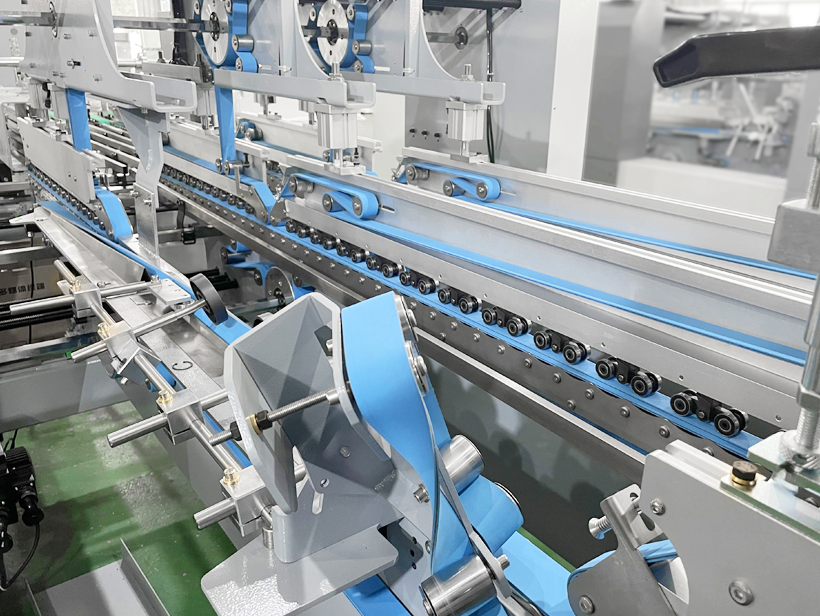

Bottom sticker Section
Three sets of upper and lower belts, with adjustable movement of the moving plate controlled by a motor.
Four sets of bottom hooking devices and fastening aids to meet the needs of various box types.

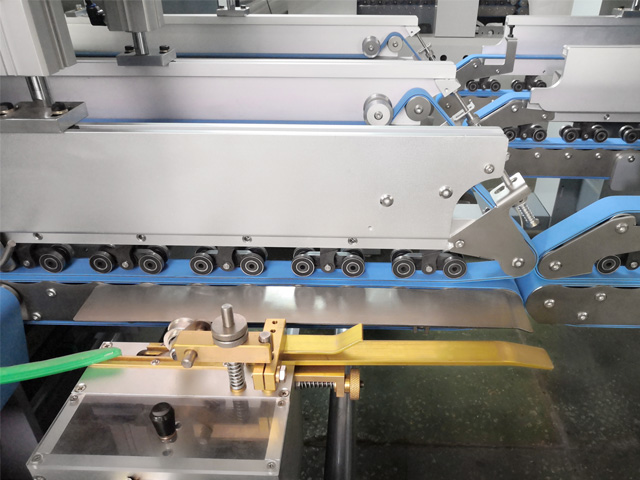

This Section
Three board structure, with left and right adjustment movement controlled by a motor.
Add an upper plate extension device to ensure stable transportation when making wider box shapes.
Two devices on the left and right sides of the lower paste cylinder (paste tray width 10mm) are used for quantitative paste application, with large capacity and easy maintenance.
Add an extrusion device and independent motor control to solve the problem of horn mouth and correction during the production of wider box shapes. The extrusion force can be adjusted by the handwheel.
Pressing Down on The Part
Two sets of expandable upper and lower straps that can adapt to various lengths of box shapes.
Using a photoelectric counter to preset quantitative counting, control the kick plate to automatically label the paper box according to the set quantity.
Add a pressure roller device to press the paper box, making the edge of the paste more tightly attached and the product output more stable.
PLC、 The human-machine interface realizes human-machine interaction and is equipped with a wireless remote control.

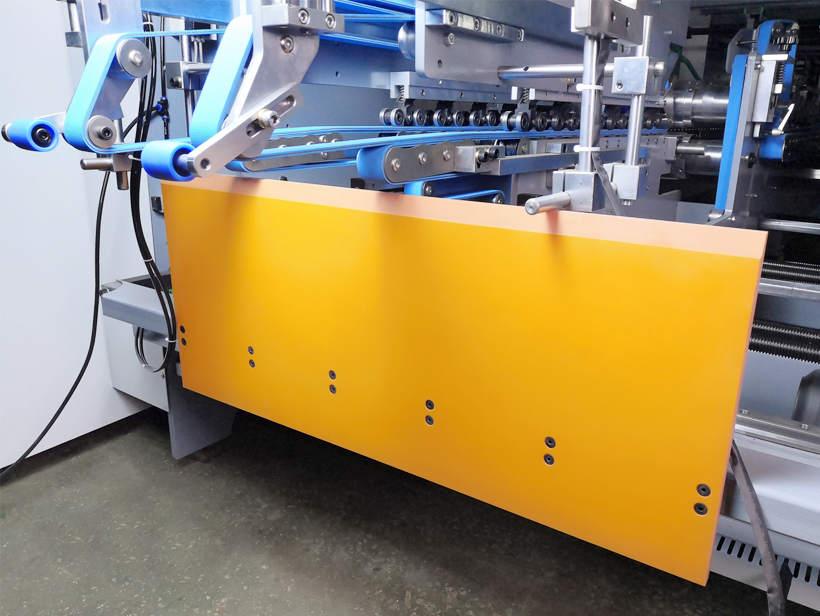

Capture All Devices Together
Using independent motor control, adjust the frequency according to the size of the paper box and the operating speed of the machine, correct the up and down lines of the paper box, and ensure the accuracy of box pasting.

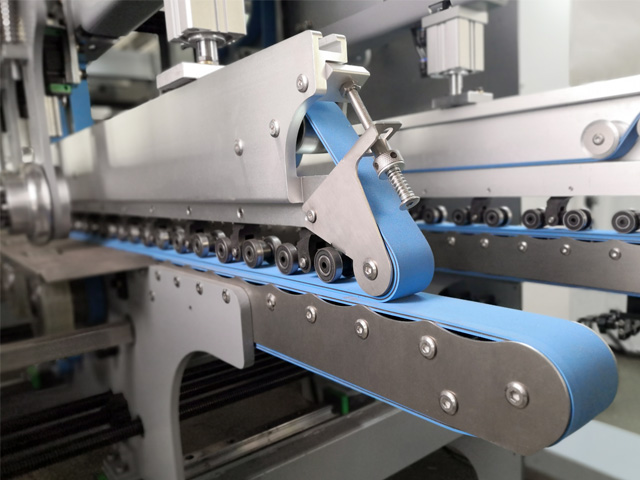

Transportation Department
The main function is to compact the adhesive part on the paper box, ensuring that the paper box is completely glued and formed;
The upper and lower conveyor belts are made of imported PVC belts with excellent wear resistance;
Using pneumatic method to adjust the pressure between the upper and lower conveyor belts to suit various thicknesses of paper boxes;
Cylinder controlled pneumatic pressure system, which can be used to adjust the height of the conveying section to ensure smooth entry of the paper box into the conveying section;
An additional sponge belt is used to press the adhesive part.
