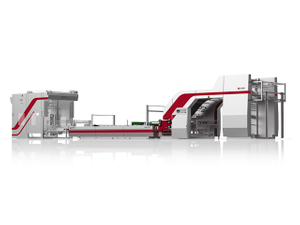

Lamitek 1514

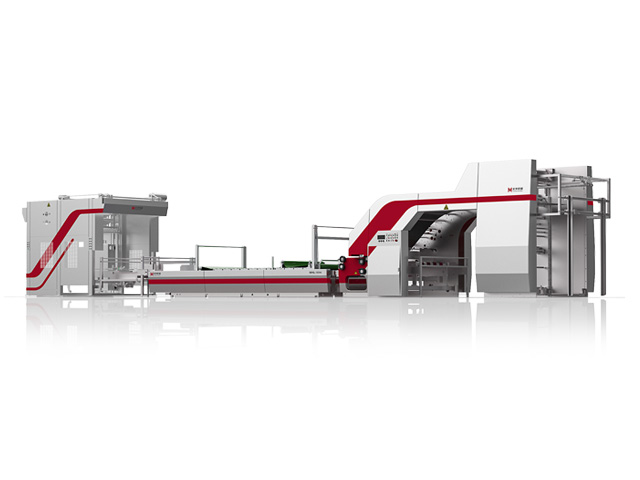

The Lamitek 1514/1716 high-speed laminating machine is a fully automatic computer-controlled model featuring program-based positioning and comprehensive automatic calibration. Users simply input paper length and width, and the machine automatically adjusts accordingly. With front gauge tracking and computer-calculated servo compensation, it ensures precise alignment during operation. The system automatically maintains consistent feed spacing between consecutive sheets when switching formats, achieving a production rate of 13,000 sheets per hour. Its user-friendly calibration process significantly reduces setup time.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WHL-1514	WHL-1716
Max.sheet size	1500×1400 mm	1700×1600 mm
Min.sheet size	390×360 mm
Print sheets	150-800g
Total mechanical horsepower	28.5 KW
Flute sheets	≥300 GSM white cardboard, G/F/E/A/B wall, 3/5-Layer
Machine speed	MAX.13000 sheets / hr
Machine Weight	9 Ton	10 Ton
Machine Dimension	L14.0m×W2.6m×H2.9m	L14.0m×W2.8m×H2.9m
Model No.	1514	1716
Max.sheet size	1500×1400 mm	1700×1600 mm
Min.sheet size	470×360 mm
Total mechanical horsepower	8.5 KW
Applicable paper	F/E/A/B wall, 3/5-Layer
Machine speed	MAX.13000 sheets / hr
Machine Weight	4.5 Ton	5 Ton
Machine Dimension	L5.3m×W2.6m×H3.0m	L5.3m×W2.8m×H3.0m
