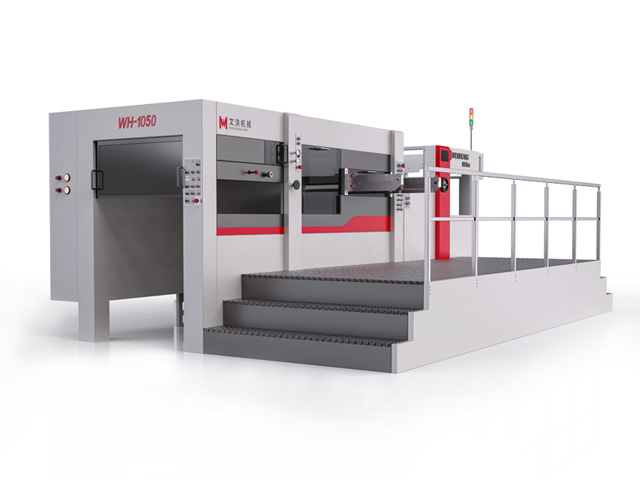

Excelcut 1050

The fully automatic flatbed die cutting machine Excelcut 1050 features an inclined paper feeding table, making it particularly suitable for conveying and positioning high-speed thin papers. The front positioning flap allows four-point individual fine adjustment to achieve precise alignment under varying paper conditions. Utilizing advanced technology, single-tooth row positioning enables front-back compensation adjustments, meeting stringent processing accuracy requirements. Equipped with a deep embossing hot stamping die-cutting machine featuring reinforced design, the model also offers an optional one-button adjustment version that enables simultaneous setting of all dimensions across the entire machine.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1050S	WH-1050SS	WH-1050SSR
Max.Sheet Size	1050×750mm	1050×750mm	1050×750mm
Min.Sheet Size	400×360mm	400×360mm	400×360mm
Max.Cutting Size	1040×720mm	1040×720mm	1040×720mm
Maximum cutting pressure	400Ton		600Ton
Feeding materials	80-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤4mm
Min.gripping margin	9.5mm
Maximum mechanical speed	8000 Sheets/hr
Required air supply	Air compressor discharge 0.36M³/Min-provided by the user
Power required	20.0kw	20.0kw	45.0kw
Machine weight	16 Ton	17 Ton	20 Ton
Machine dimension	L6.42×W4.21×H2.42m	L7.38×W4.21×H2.42m	L7.38×W4.21×H2.42m
