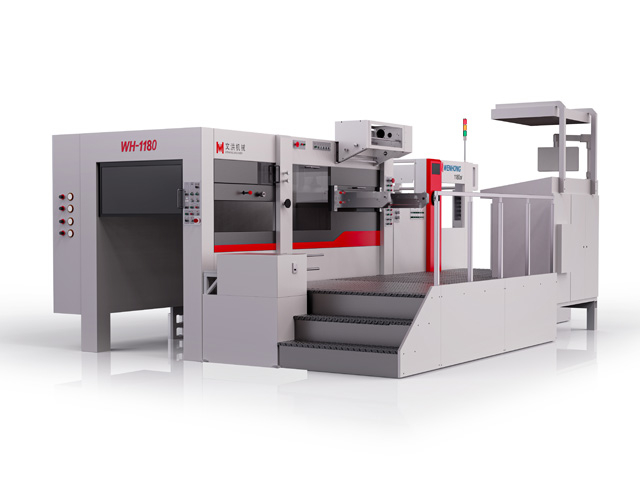

Excel Foil 1180

The fully automatic flatbed die-cutting and foil stamping machine Exelfoil 1180/1300 offers a versatile solution for die-cutting and gold stamping, featuring both longitudinal and transverse foil feeding systems. Its gold stamping unit is equipped with a world-leading control system, where each axis is driven by high-power servo motors allowing independent programming of foil travel and step adjustments. The machine features user-friendly operation and meets stringent precision processing requirements.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1180SF	WH-1300SF
Max.Paper Size	1180×900mm	1300×1050mm
Min.Paper Size	400×360mm	440×360mm
Max.Die Cutting Size	1150×885mm	1290×1000mm
Max.Hot Foil Stamping Size	1150×885mm	1290×1000mm
Board Size	1230×915mm	1370×1025mm
Feed Material	100-2000g/m² cardboard, 0.1-2mm cardboard, corrugated board ≤4mm
Max.Speed	7500 sheets/h	6800 sheets/h
Max.feeding pile height	1600mm
Max.conveying paper height	1450mm
Working Pressure	400 Ton
Power required	55.0 kw	75.0 kw
Electric Heating System	12 heating zones Max.200℃	20 heating zones Max.200℃
Registration Accuracy	≤±0.075mm
Machine Weight	23 Ton	26 Ton
Machine Dimension	L7.88m×W4.34m×H2.52m	L9.3m×W4.52m×H2.6m
