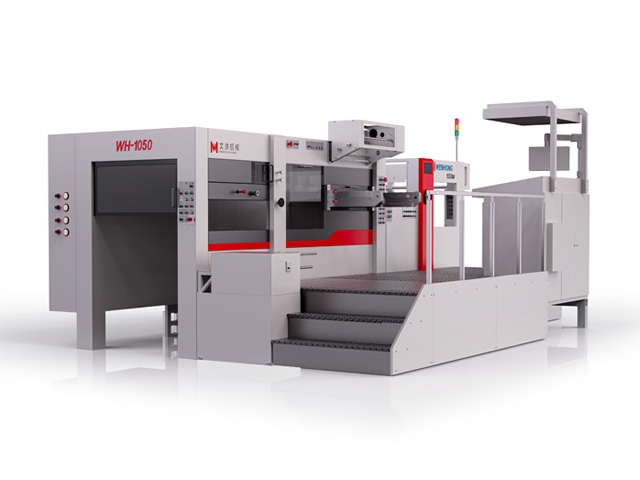

Excel Foil 1050

The fully automatic flatbed die-cutting and foil stamping machine Exelfoil 1050 offers a versatile solution for die-cutting and gold stamping, featuring both longitudinal and transverse foil feeding systems. Its gold stamping unit is equipped with a world-leading control system, where each axis is driven by high-power servo motors allowing independent programming of foil travel and step adjustments. The machine features user-friendly operation and meets stringent precision processing requirements.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1050SF
Max.Paper Size	1050×750mm
Min.Paper Size	400×360mm
Max.Die Cutting Size	1040×720mm
Max.Hot Foil Stamping Size	1020×720mm
Board Size	1140×760mm
Feed Material	80-2000g/m² cardboard, 0.1-2mm cardboard, corrugated board ≤4mm
Max.Speed	8000 sheets/h
Max.feeding pile height	1600mm
Max.conveying paper height	1450mm
Working Pressure	400 Ton
Power required	55.0 kw
Electric Heating System	12 Individual heating areas, Max.heating 200℃
Registration Accuracy	≤±0.075mm
Machine Weight	18 Ton
Machine Dimension	L7.38m×W4.1m×H2.42m
