Bag loong 1600DB

The intelligent dual-sheet handbag bagging machine Bag Loong 1600DB features a high-quality imported paper feeding belt and a precision feeding system; its user-friendly design allows quick adjustment within 10–30 minutes; it operates stably and efficiently, enabling small models to produce large bags; employing an integrated molding process that completes production from raw material to finished product in a single step, resulting in bags with a neat and aesthetically pleasing appearance; the bottom and sides are firmly bonded for strong load-bearing capacity, making it widely suitable for mass production of various handbags, shopping bags, and premium bags.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1600DB
Feed Material	200g≥200 GSM Cardboard
Gluing Type	Single/Double Sheet Hand paper bag
Box size	MAX. 1600 mm
Gluing Speed	4000-5000 pcs/h Based on sheet type, operation, etc.
Feeding Type	Belt Automatic accurate continuously feeding Feeder
Glue	Cold and hot melt adhesive system to spray white adhesive or instant hot melt adhesive.
Power required	40KW, AC380V
Air Pressure	6-8kg/cm²-6-8kg/cm²-User owned
Machine Weight	13.5 Ton
Machine Dimension	L23.5mW2.4mH2.2m

Bag loong 1600DB

Product Category

We are one of the Top manufacturers for carton converting equipment offering.automatic die cutter, automatic flute laminator, folder gluer, and window patching machine.

QUICK LINKS

PRODUCT CLASSIFICATION

CONTACT US

Add: Wenhong Inddustrial Park,Kukeng,Guanlan,Shenzhen,China
Mob: +8613764659858
Tel: 075528088188
Email: sales-director@wenhong.cc

Email
- E-mail
Tel
- Tel

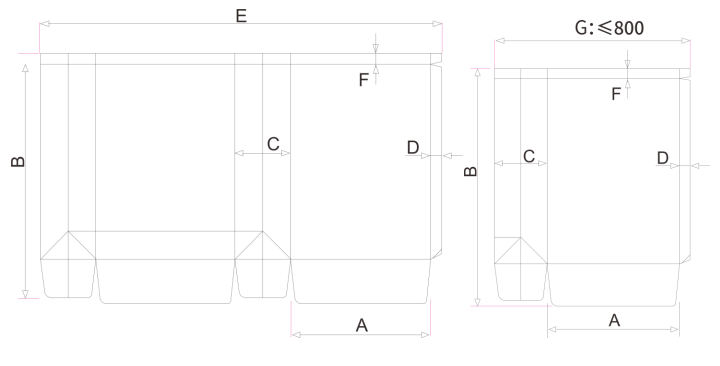

MIN-MAX
A	130-550
B	320-650
C	60-200
D	18
E	520-1400
F	30
