Bag Making (V bottom)

The Bag Loong 1400NC/1600NC intelligent V-Bottom handbag bagging machine
A high-quality imported paper feeding belt and precision feeding system;
It manufactures V-bottom paper bags with no creases on the bag surface;
Employing an integrated molding process that completes the entire production chain from raw materials To finished products, resulting in paper bags with a neat and aesthetically pleasing appearance;
The bottom and sides are firmly bonded for strong load-bearing capacity, making it widely suitable for mass production of various handbags, shopping bags, and premium bags.

Quantity:
Availability:





Inquire Add to Basket

Model No.	WH-1400	WH-1600
Feed Material	≥200 GSM Cardboard
Gluing Type	Hand paper bag
Box size	MAX. 1400 mm	MAX. 1600 mm
Gluing Speed	3500-5000 pcs/h (Based on sheet type, size, operation, etc.)
Feeding Type	1.Belt Automatic accurate continuously feeding 2.Feeder
Glue	Cold and hot melt adhesive system to spray white adhesive or instant hot melt adhesive.
Power required	40KW, AC380V
Air Pressure	6-8kg/cm²-User owned
Machine Weight	15 Ton	15.5 Ton
Machine Dimension	L24.5mW2.1mH2.2m	L24.5mW2.3mH2.2m

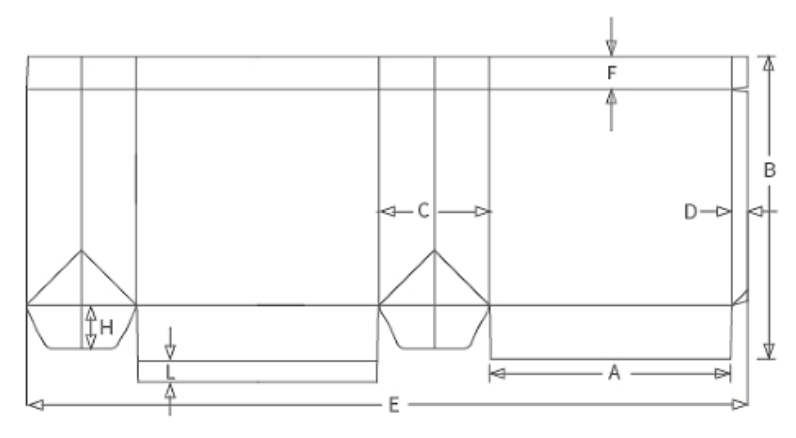

MIN-MAX (mm)
	1400	1600
A	200-540	200-540
B	320-650	320-650
C	60-200	60-200
D	18	18
E	500-1400	500-1600
F	30	30
H	55	55
L	25	25
