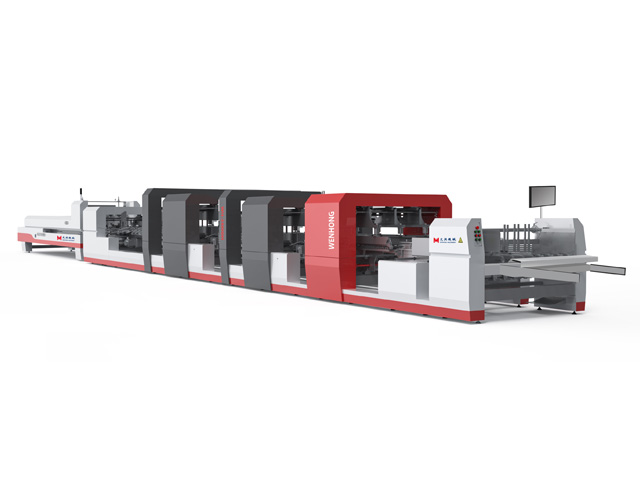

Automatic Double Gluing&Stitching 2400DH/2800DH

The machine adopts full‑servo design, featuring stable operation and accurate positioning;
It is fitted with imported high‑speed stitching heads;
It is specially designed for carton packages of air‑conditioners, refrigerators, televisions, computers, as well as various large stitched and glued boxes.

Quantity:
Availability:





Inquire Add to Basket

Model No.	WH-2400DH	WH-2800DH
Max.Speed	300 m/min	300 m/min
Power required	90 kw	90 kw
Air Pressure	15 m³/h	15 m³/h
Machine Weight	≈23 Ton	≈25 Ton
Machine Dimension	23.53.82.4 m(LWH)	23.54.22.4 m(LWH)

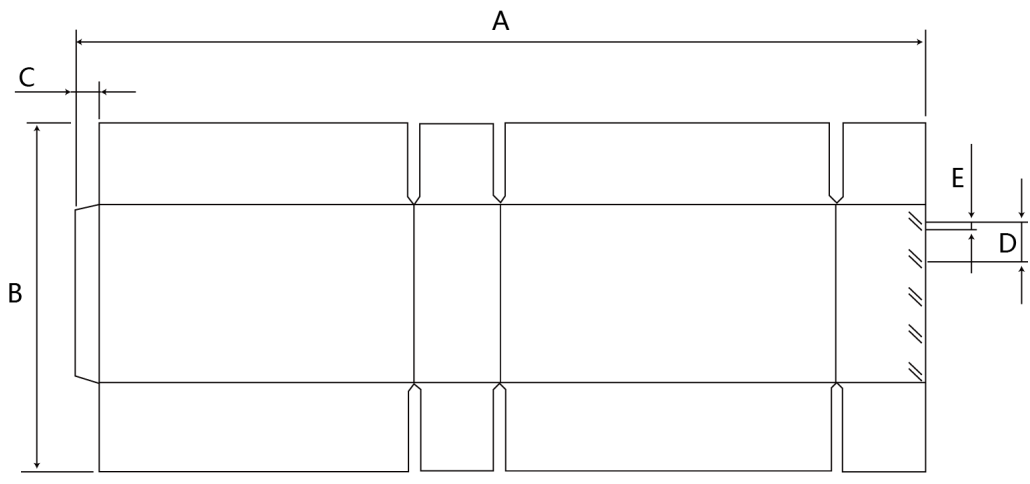

Model No.	Process	A	B	C	D	E	Paper Thickness	Paper Type
WH-2400DH	Gluing	650-2400	350-1400	20-50	-		3mm-8mm	E、B、C BC、AB
WH-2400DH	Stitching & Gluing	800-2400	350-1400	30-40	20-200	10
WH-2800DH	Gluing	650-2800	350-1400	20-50	-
WH-2800DH	Stitching & Gluing	800-2800	350-1400	30-40	20-200	10
