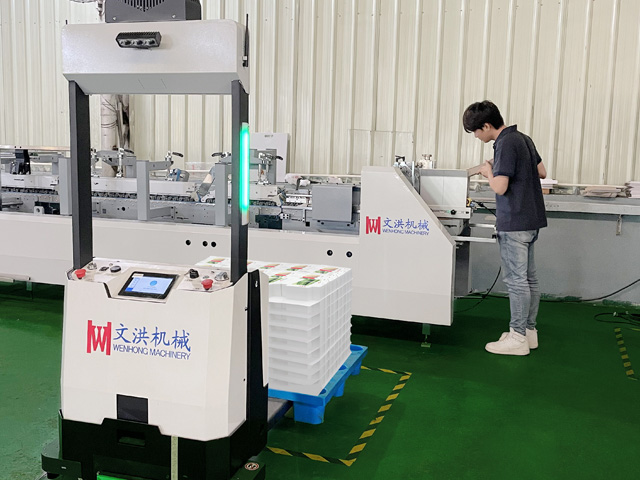

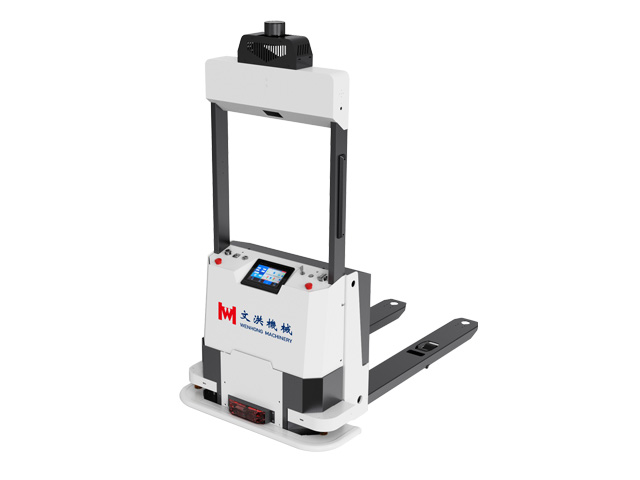

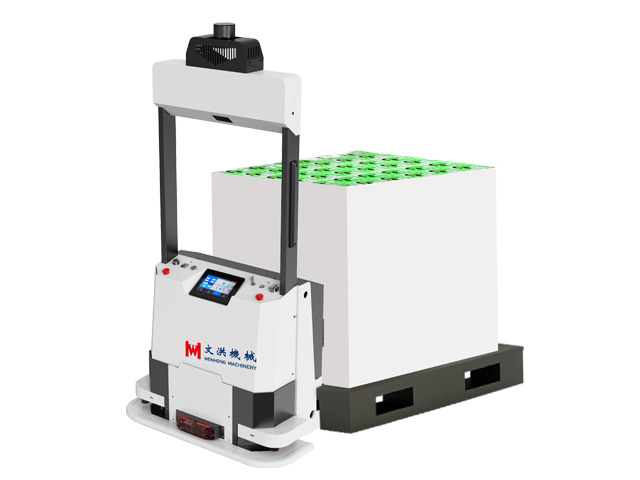

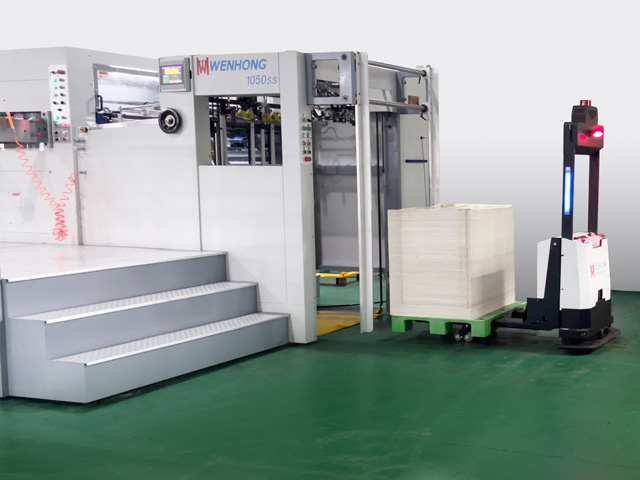

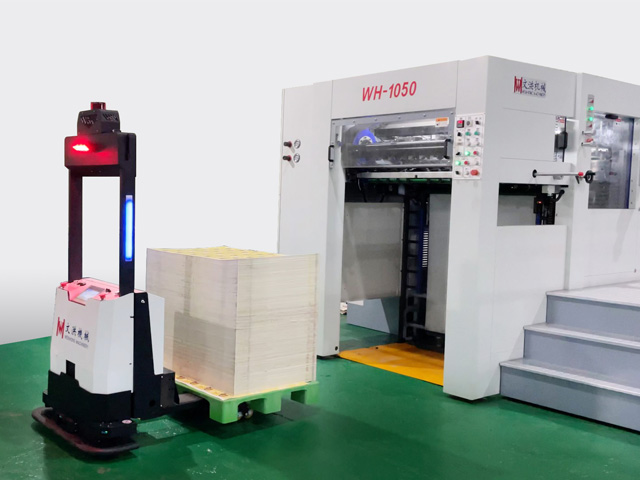

AGV Folk Lift

Intelligent Navigation: High-precision laser SLAM navigation with 2 mm accuracy, featuring rapid movement and steering response for precise control; Easy deployment: Fully automated control via a smart tablet computer, requiring only 6 hours to configure operations; Simple maintenance: Modular design and intelligent functionality enable seamless integration with MES/WMS systems for remote ordering; Automatic charging: Hassle-free operation with automatic charging; Radar obstacle avoidance: High-precision radar-based intelligent obstacle detection suitable for hybrid human-machine factory environments.

Availability:

Quantity:



Inquire Add to Basket

Model No.	WH-1500
Operation type	Remote control + automatic
load	1500kg
Load center distance	600mm
Tire type, drive wheel / carrier wheel	polyurethane
Drive wheel size (diameter x width)	Φ210×70mm
Bearing wheel size (diameter x width)	2-Φ80×61mm
Balance wheel size (diameter x width)	2-Φ75×46mm
Standard maximum lifting height	110mm
Fork face height after fork lowering	80mm
Ground clearance at wheelbase Center	30mm
The tray is 1200 wide x 1000 long channel width	1711mm
Width of tray is 1200 x length of channel is 800	1911mm
Turning radius	1175mm
Fork size	50/150/1150mm
Outer width of fork	685/540mm
Dead weight (including battery)	250kg
Vehicle size (length width height)	L1614mm×W693mm×H1215mm
